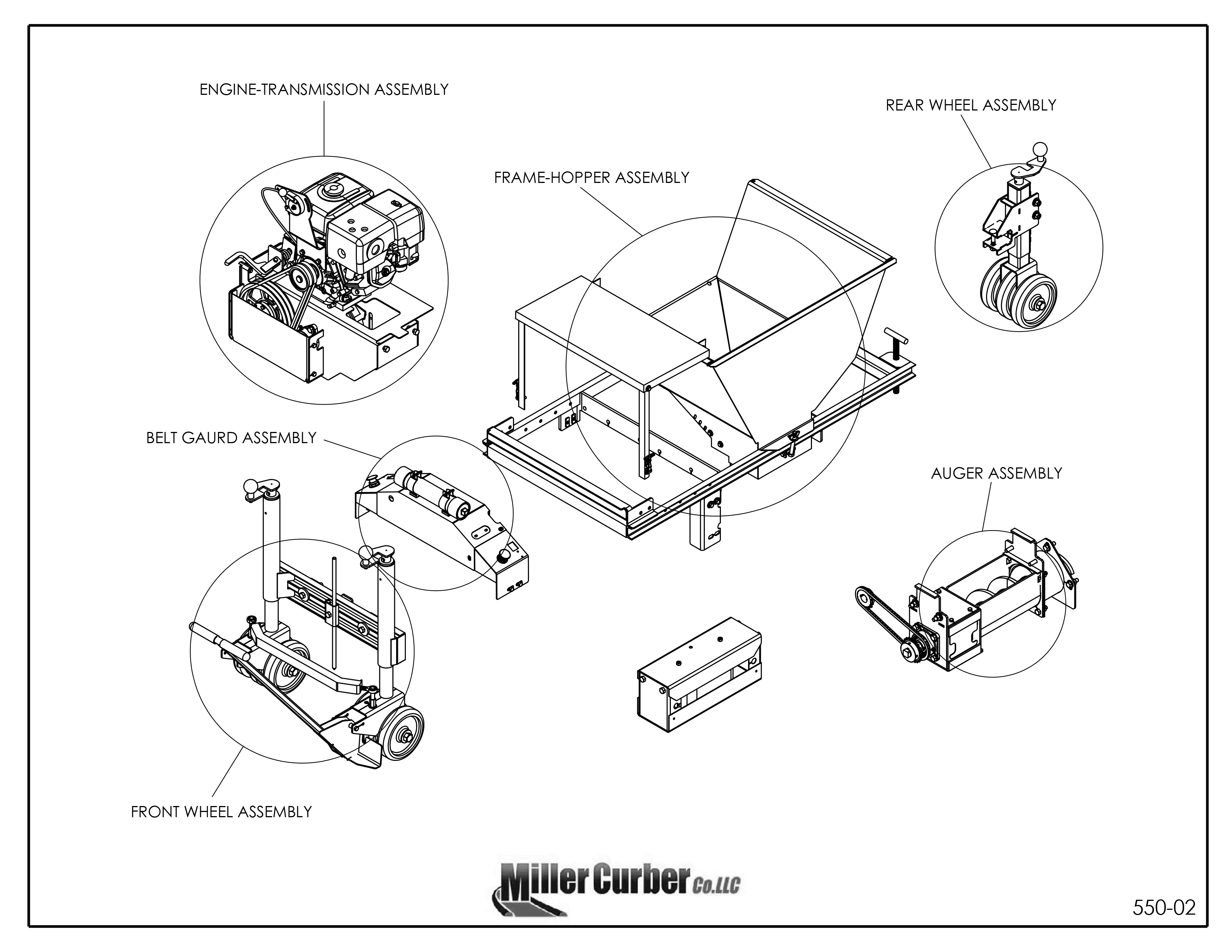

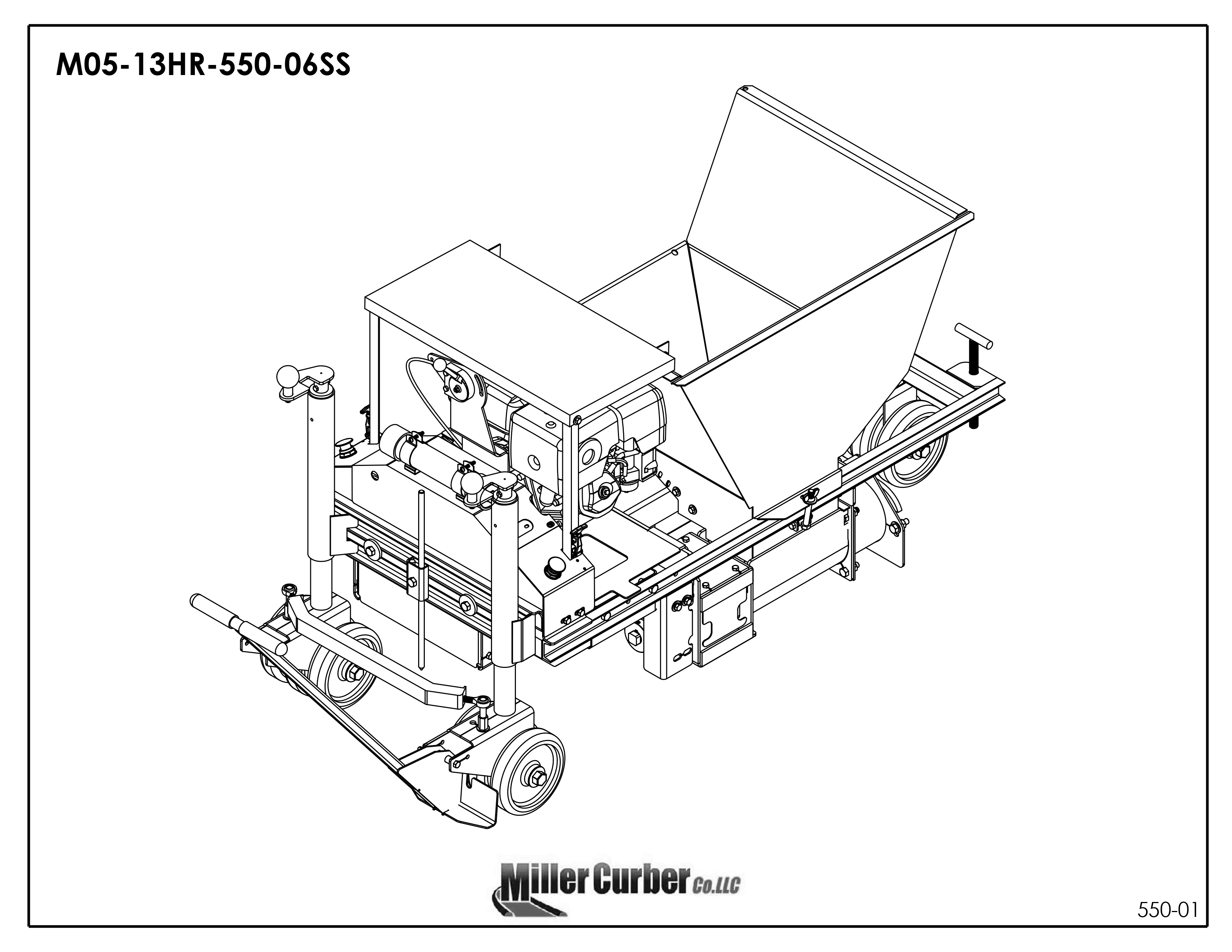

To help us find your part, look through the images of your particular machine. Enter the item no. part number description into the Parts Finder text box under – List the parts you need. Assemblies at the bottom, please scroll down.
ITEM NO. PART NUMBER DESCRIPTION
Copy and paste the part’s – item no. part number description – into the Parts Finder text box under – List the parts you need. Then click NEXT to complete the form. Assemblies at bottom, please scroll down.
1 45019-29 CENTER BELT GUARD COVER
2 45019-18 RIGHT HAND BELT GUARD WELDMENT
3 45019-19 LEFT HAND BELT GUARD WELDMENT
4 44108-01 MANUAL TUBE
5 44108-05 MANUAL TUBE CAP
6 44108-07 MANUAL TUBE MOUNTING CLAMPS
7 45049-25 EMERGENCY STOP SWITCH, RECOIL START
8 USS FLAT WASHER, 3/8″
9 LOCK WASHER, 3/8″
10 HHCS, 3/8-16 UNC x 3/4″ LG.
11 45034-15 SHORT ADJUSTING SCREW WELDMENT
12 45036-11 JACK HANDLE ASSEMBLY
13 45039 REAR WHEEL FORK, SHORT
14 45034-03 REAR JACK COVER WELDMENT
15 45033-01 REAR JACK CLAMP BRACKET, SQUARE TUBE
16 WT0100 8″ x 2″ RUBBER WHEEL W/ ROLLER BEARING
17 USS FLAT WASHER, 3/4″
18 JACK ASSEMBLY THRUST BEARING
19 47132-24 CARRIAGE BOLT, 1/2-13 UNC x 3-1/2″ LG.
20 47139-37 CARRIAGE BOLT, 1/2-13 UNC x 3″ LG.
21 45094-04 AXEL, 3/4-10NC x 10″ LG W/ LOCKNUTS
22 USS FLAT WASHER, 1/2″
23 LOCK WASHER, 1/2″
24 HEX NUT, 1/2-13 UNC
25 45038-01 MC-550/650 FRONT WHEEL FORK
26 45005-02 FRONT JACK HOUSING
27 45059-08 TIE ROD
28 45059-04 MALE TIE ROD END W/ STUD
29 45020-13 STEERING HANDLE
30 45031-18 MARKER HOLDER ROD BRACKET
31 45031-11 MC-550/650/850 MARKER POINTER
32 45031-17 CURBER MARKING ROD BACKPLATE
33 45031-21 FRONT END CLAMP RETAINING NUT
34 45140-31 FRONT END CLAMP WASHER
35 45059-11 COUPLING NUT, 1/2-20 UNF x 1-1/4″ LG.
36 45059-12 HHCS, 1/2-20 UNF x 1″ LG.
37 HHCS, 3/8-16 UNC x 4″ LG.
38 HHCS, 1/2-13 UNC x 4″ LG.
39 HHCS, 1/2-13 UNC x 3″ LG.
40 HHCS, 5/16-18 UNC x 1-1/2″ LG.
41 LOCK NUT, 3/8-16 UNC
42 HHCS 3/8-16 UNC x 2-1/4″ LG.
43 HHCS, 1/2-13 UNC x 3-3/4″ LG.
44 SAE FLAT WASHER, 1/2″
45 LOCK NUT, 1/2-13 UNC
46 45018-09 6″ SOLID AUGER, 9″ LONG
47 BE0200 1-1/4″ 4-BOLT FLANGE BEARING
48 HHCS, 3/8-16 UNC x 2-1/2″ LG.
49 HEX NUT, 3/8-16 UNC
50 SK0200 15 TOOTH SPROCKET
51 SK0300 23 TOOTH SPROCKET
52 45050-10 ROLLER CHAIN, 37″ LONG
53 45010-01 6″ STANDARD AUGER HOUSING
54 45014-01 6″ COMPACTION TUBE
55 45023-01 SOLID AUGER SHAFT
56 HHCS, 5/16-18 UNC x 1″ LG.
57 HHCS, 1/2-13 UNC x 1-1/2″ LG.
58 HHCS, 1/2-13 UNC x 1-3/4″ LG.
59 HHCS, 1/2-13 UNC x 1-1/4″ LG.
60 45045-01 CURBER FRAME WELDMENT 550/650
61 45003-11 CURBFORM HOLD DOWN SCREW
62 45013-09 HOPPER ADJUSTING PLATE
63 45012-13 HOPPER CLAMP
64 45145-01 ENGINE COVER
65 45145-10 ENGINE COVER BRACE
66 45050-18 CHAIN GAURD
67 MS0200 RUBBER HOOD LATCH
68 45145-17 RETRACTABLE PLUNGER
69 45015-01 WHEELBARROW HOPPER, LH
70 WING NUT, 1/2-13 UNC
71 HHCS, 3/8-16 x 1″ LG.
72 SAE FLAT WASHER, 5/16″
73 NYLOK LOCK NUT, 5/16-18 UNC
74 HHCS, 5/16-18 UNC x 3/4″ LG.
75 45008-01 CURBILDER MOTOR MOUNT
76 45050-05 GEAR REDUCER
77 45016-17 IDLER BRACKET WELDMENT
78 45016-10 IDLER SPROCKET W/ BUSHING
79 45024-09 SAFETY TORQUE ARM HANDLE
80 45024-14 SAFETY TORQUE ARM STUD
81 BE0100 1-1/4″ 2-BOLT FLANGE BEARING
82 EN0600 13 HP HONDA, RECOIL START
83 45050-23 COG “V” BELT
84 45050-02 2 GROOVE Q.D. SHEAVE
85 45050-03 Q.D. BUSHING FOR 4050-02
86 45016-22 SHOULDER BOLT, 3/4-10 UNC x 2″ LG.
87 45016-21 IDLER BRACKET TUBE
88 45050-16 OUTPUT SHAFT
89 45024-03 SAFETY TORQUE ARM
90 45024-04 SAFETY TORQUE ARM BRACKET
91 45016-18 IDLER BRACKET RETAINING PLATE
92 HEX NUT, 5/8-11 UNC
93 HEX NUT, 1/2-13 UNC
94 45130-23 13HP HONDA THROTTLE MOUNTING BRACKET
95 45008-10 SHEAVE GAURD
96 45132-43 THROTTLE CONTROL
97 45130-34 13 HP HONDA THROTTLE CABLE ASSEMBLY
98 45024-02 TORQUE ARM COMPRESSION SPRING
99 HHCS, 1/4-20 UNC x 1-1/4″ LG.
100 LOCK NUT, 1/4-20 UNC
101 SAE FLAT WASHER, 3/8″
102 HHCS, 3/8-16 UNC x 1-3/4″ LG.
103 FLAT WASHER, 5/8″ GRADE 8
104 45048-07 CLUTCH, 1″ BORE, STD. DUTY
105 MS0400 JACK HANDLE KNOB
106 HHCS, 1/4-20 UNC x 1-1/2″ LG.
107 CG0100 GRIP, HANDLEBAR
108 45010-12 6″ AUGUR SHAFT GAURD
109 45130-27 HONDA THROTTLE WIRE SWIVEL
110 45108-07 3/8″ CAGE NUT
111 45132-44 BULK HEAD FITTING
120 LOCK NUT, 5/16-18 UNC
Assemblies
Short Front End Assembly consists of: 45034-15, 45038-01, 45005, 45031-21, MS0400 & tie rod assembly (45059-07)
Tie Rod Assembly consists of part numbers: 45059-08, 45059-11, 45059-12, 45059-04
Short Rear End Assembly consists of: 45034-15, 45036-11, 45039-01, 45034-03, BE0600, MS0400 & tie rod assembly
Short Rear End Assembly with a round cross member consists of: 45034-15, 45036-11, 45039-01, 45034-03, BE0600, MS0400
5″ Solid Auger Assembly consists of: 45018-18, 45023-01, 45122-01, 45121-11, BE0200, SK0300
5″ Hollow Auger Assembly consists of: 45018-19, 45023-08, 45122-01, 45121-11, BE0200, SK0300
6″ Solid Auger Assembly consists of: 45018-19, 45023-08, 45122-01, 45121-11, BE0200, SK0300
6″ Hollow Auger Assembly consists of: 45018-11, 45023-08, 45010-14, BE0200, SK0300
8″ Solid Auger Assembly consists of: 45126-01, 45023-01, 45127-11, 45128-01, BE0200, SK0300
8″ Hollow Auger Assembly consists of: 45126-07, 45023-08, 45127-11, 45128-01, BE0200, SK0300
Throttle Assembly consists of: 45130-23, 45132-43, 45130-24, 45130-27, 45132-44, 40120-11
Idler Sprocket Assembly consists of: 45016-10, 45016-17, 45016-22, 45016-18
