To help us find your part, look through the images of your particular machine, then copy and paste the item no. part number description into the Parts Finder text box under – List the parts you need. Assemblies at the bottom, please scroll down.

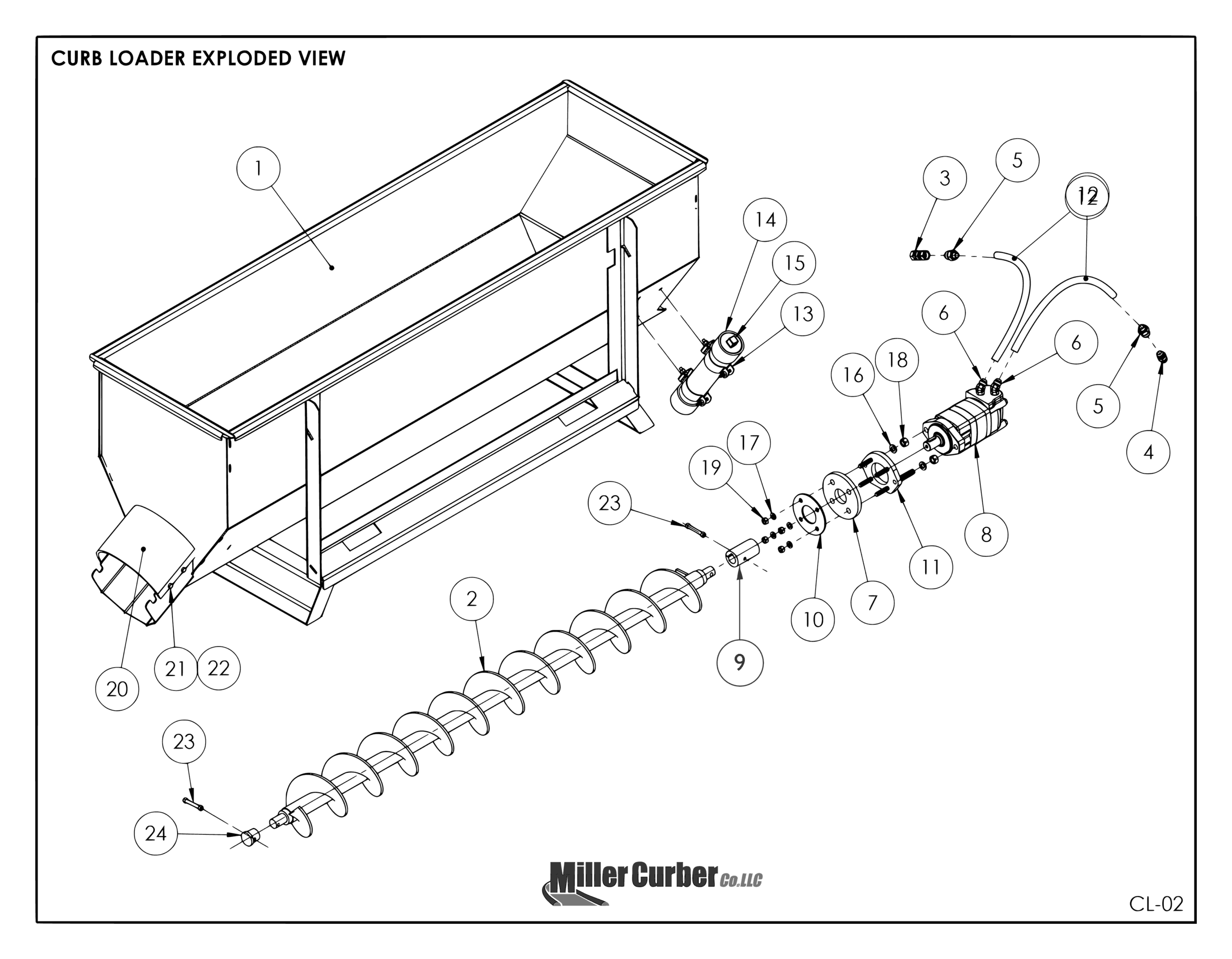

ITEM NO. PART NUMBER DESCRIPTION
Copy and paste the part’s – item no. part number description – into the Parts Finder text box under – List the parts you need. Then click NEXT to complete the form. (For a quick response, add your email or text # to this text box, along with your part numbers.) Assemblies at bottom, please scroll down.
1 43502-01 CURB LOADER HOPPER WELDMENT
2 43501-01 AUGUER WELDMENT
3 43500-23 FEMALE QUICK DISCONNECT
4 43500-22 MALE QUICK DISCONNECT
5 43500-21 STRAIGHT HYD. FITTING
6 43500-20 45 DEGREE HYD. ELBOW
7 43500-18 1/2″ x 5″ DIA. NEOPRENE SEAL, 40 DURO
8 43500-03 HYDRAULIC MOTOR
9 43500-02 COUPLING
10 43500-05 RING FLANGE
11 43500-06 HYDRAULIC MOTOR MOUNT
12 43500-19 HYDRAULIC HOSE
13 44108-06 MANUAL TUBE MOUNTING CLAMPS
14 44108-01 MANUAL TUBE
15 44108-05 MANUAL TUBE CAP
16 LOCK WASHER, 1/2″
17 LOCK WASHER, 3/8″
18 HEX NUT, 1/2-13 UNC
19 HEX NUT, 3/8-16 UNC
20 43500-28 RUBBER DISCHARGE COVER
21 HHCS, 1/4-20 UNC x 3/4″ LG.
22 LOCK NUT, 1/4-20 UNC
23 45018-15 SOLID SHEAR BOLT W/ LOCK NUTS
24 43501-04 AUGER CAP WELDMENT
